Professional Bimetallic steam trap Manufacturer

The operating principle of the SM bimetallic steam trap is based on two opposing forces acting on the valve, one is the force of the system pressure to open the valve, and the other is the force of the condensate temperature acting on the bimetallic element to close the valve. The SM type will not leak steam during operation and can automatically and quickly discharge air, non-condensable gases, and a large amount of condensate when the system starts.

Get A Quote

Working principle of thermal-static type steam trap

Working principle +

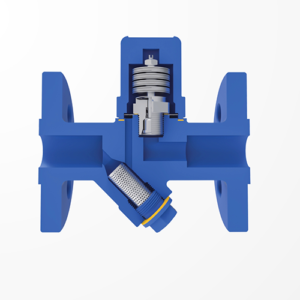

Bimetallic steam trap (non-return function)

Working principle +

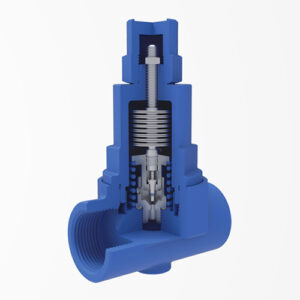

Bimetallic steam trap (online adjustable)

Working principle +

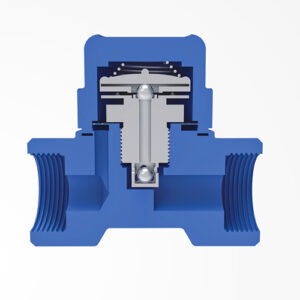

Pressure Balance Steam Trap

Working principle +

OUR ADVANTAGES

Corporate philosophy

Focus on the production and manufacturing of high-quality products, and strive to enhance brand value and service quality!

Quality Assurance

As a manufacturing company with a long production history, we have full confidence in the quality of our products!

Service guarantee

We are equipped with a professional service team to provide customers with comprehensive pre-sales and after-sales services!

Make steam work for you

Solve the energy problems and challenges facing your facilities

OUVI provides products and services to keep your steam system in optimal condition, overcome challenges with customers, achieve safe and reliable operation, save energy, and improve production efficiency.

We can provide steam knowledge, various related calculations, valve and pipeline equipment selection, and overall energy-saving optimization transformation solutions for steam and thermal energy systems based on the user’s process equipment requirements.

• No air blockage	•Resistant to high temperature and corrosion of metal sheets	• Filter function	•Reliable work
At low temperatures, the valve is in an open state, and the air and a large amount of condensed water can be discharged in a short time without causing air blockage.	Adopt bimetallic strip imported from Germany, which is corrosion-resistant, high-temperature-resistant, stable in operation and long in service life.	Built-in filter with super filtering function can effectively prevent debris from entering the valve.	All internal parts are made of stainless steel, which is resistant to corrosion and cavitation; they can be installed in any direction; there is always high-temperature condensed water in front of the valve to form a reliable water seal without steam leakage.

• Tightly sealed	• Not limited by installation location	• Durable	• Energy saving
The sealing surface adopts the SCCV reverse closing system. After research and development, it can automatically find the center when closing, has good sealing performance, and is very reliable in closing. The valve will close in the negative pressure state to play a check role.	The entire series of bimetallic discs can be installed in any direction.	The entire series of bimetallic strips are anti-freeze and anti-water hammer.	Effectively utilize the sensible heat in high-temperature condensed water, with significant energy-saving effect.

•Super energy saving	• Adjustable discharge temperature	• No air blockage	•Reliable work	•SCCV automatic centering closing system
Complete water vapor separation, 100% prevention of raw steam leakage, and super energy saving.	The discharge temperature of condensed water can be adjusted arbitrarily according to the use conditions and is not affected by changes in the inlet pressure within the use pressure range.	At low temperatures, the room is in an open state, and the condensed water from the air and the large space can be discharged in a short time without causing air blockage.	The bimetallic strip is imported from Germany to maintain stable thermal thrust, and the remaining components are made of stainless steel to resist corrosion and cavitation.	Make the internal parts contact each other softly and close accurately to extend the service life.
• Filter function	• Not limited by installation location	• Durable	• Energy saving
Built-in filter with super filtering function can effectively prevent debris from entering the valve.	The entire series of bimetallic discs can be installed in any direction.	The entire series of bimetallic strips are anti-freeze and anti-water hammer.	Effectively utilize the sensible heat in high-temperature condensed water, with significant energy-saving effect.

• Not limited by installation location	• Discharge temperature	• Energy saving
The entire series of pressure-balanced models can be installed in any direction	(A) The bladder controls the discharge of condensed water at 5°C below the saturation temperature. (B) The bladder controls the discharge of condensed water at 15°C below the saturation temperature.	Discharge below saturation temperature, effectively utilizing the sensible heat in high-temperature condensate, with significant energy-saving effect.
