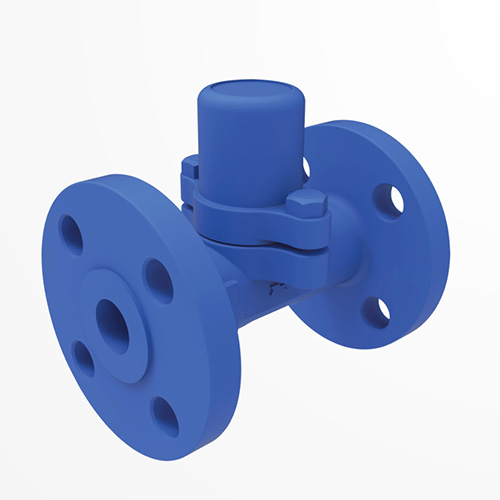

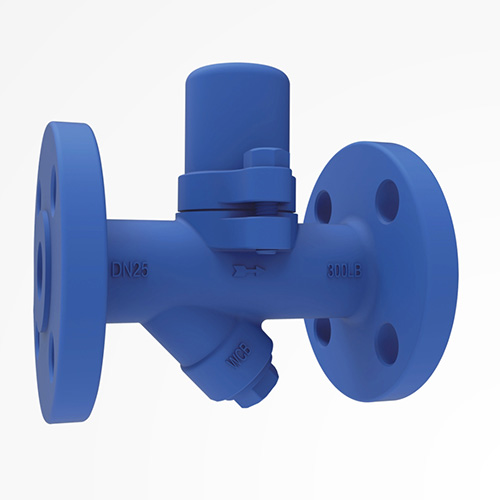

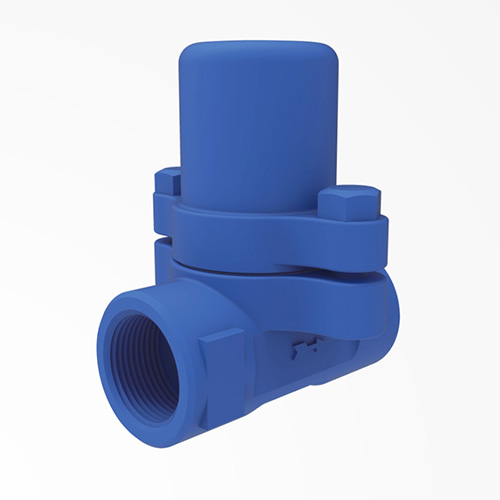

Any installation, maximum pressure difference 32bar, maximum displacement up to 950Kg/h
Features
The valve is closed in the negative pressure state, which plays a check role
Anti-freeze, anti-water shock, durable.
Can be installed in any direction.
The design structure is compact and easy to install and maintain.
| Materials | Restrictions (spherical ink) | Notice |

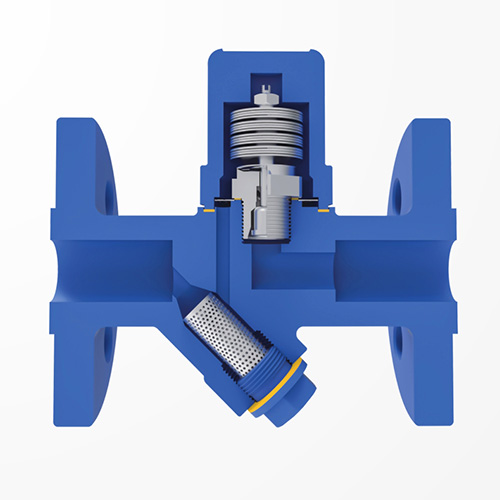

| • Valve body, valve cover: A105, F304 • Valve seat: Martensitic stainless steel • Valve disc: Martensitic stainless steel • Bimetallic: chromium-nickel stainless steel • Other internal parts: stainless steel | • Design pressure (PMA): 50bar • Maximum operating pressure (PMO): 32bar • Maximum operating temperature (TMO): 400°C | It is best not to insulate the steam trap and the area within 1m of its front end. When condensate is discharged to a condensate recovery line with back pressure, it is recommended to install a check valve after the steam trap. |
Technical Parameters
| model | SMC32 | SMC32Y | |
| Connection Type | Welding and flange preparation | ||
| Installation | Any direction | ||
| Maximum working pressure difference (PMX) | (A) | 32 bar | |
Dimensions/Weight (approximate) mm and Kg
| model | SMC32(F) | SMC32Y(F) | |||||||||||
| Nominal diameter | 15 | 20 | 25 | 32 | 40 | 50 | 15 | 20 | 25 | 32 | 40 | 50 | |
| A(mm) | 95 | / | 100 | / | |||||||||
| A1(mm) | 150 | 160 | 210 | 230 | 150 | 160 | 210 | 230 | |||||
| B(mm) | 92 | 92 | |||||||||||
| C(mm) | 95 | 95 | |||||||||||
| D(mm) | 17 | 19 | 23 | 30 | 17 | 19 | 23 | 30 | |||||
| E(mm) | / | 60 | 65 | ||||||||||
| Weight(Kg) | Thread | 1.7 | 2 | / | 1.7 | 2 | / | ||||||
| Flange | 3 | 3.5 | 4.2 | 5.5 | 6 | 7 | 3 | 3.5 | 4.5 | 5.5 | 6 | 7 | |
