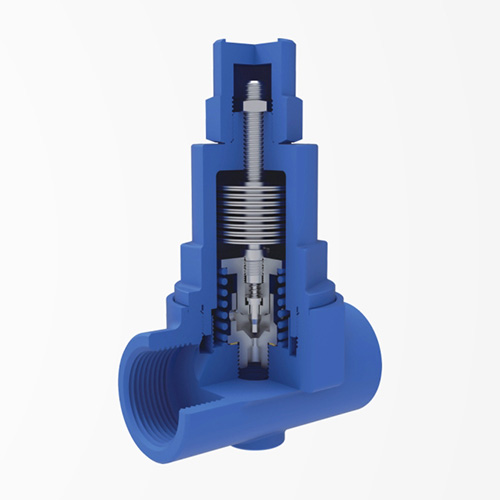

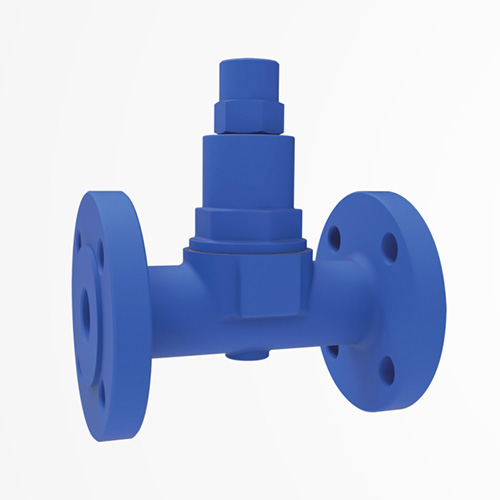

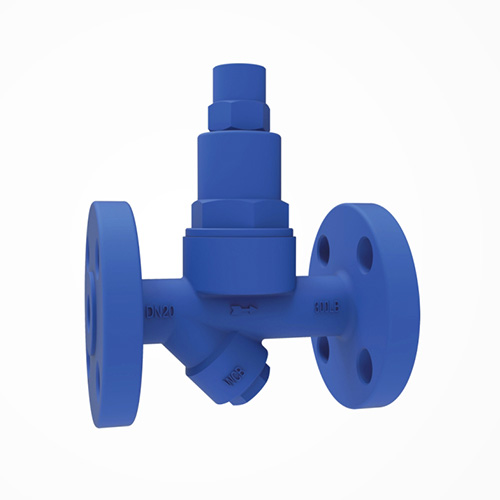

TB3 5 6 11 Series Bimetallic Steam Traps

Any installation, maximum pressure difference 21bar, maximum displacement up to 650Kg/h

Features

The SCCV automatic centering closing system allows the internal components to softly contact each other and accurately position: the closing is very reliable and the service life is extended.

Resistant to water hammer, corrosion and freezing, with excellent air exhaust performance.

It is resistant to high temperature and high pressure, and the discharge temperature can be adjusted at will within its pressure/temperature range, and there is no noise when it operates.

Can be installed in any direction

Get A Quote

Product Description

Materials	Restrictions (spherical ink)		Notice
• Valve body, valve cover: A105, F304 • Valve seat: Martensitic stainless steel • Valve disc: Martensitic stainless steel • Bimetallic: chromium-nickel stainless steel • Other internal parts: stainless steel	Design pressure (PMA): • TB3, TB5: 50 bar • TB6, TB11, TBY16: 40 bar	Maximum operating pressure (PMO) @ maximum operating temperature (TMO) • TB3, TB5: 21bar @ 350℃ • TB6, TB11, TBY16: 16bar @ 350℃	It is best not to insulate the steam trap and the area within 1m in front of it.

Dimensions/Weight (approximate) mm and Kg

model		TB3(F)、TB5(F)						TB6(F)、TB11(F)						TBY16F
Nominal diameter		15	20	25	32	40	50	15	20	25	32	40	50	15	20	25
A(mm)		90		95	120		130	90		95	120		130	/
A1(mm)		150		160	210	230		150		160	210	230		150		160
B(mm)		80			90			105			120			105
C(mm)		64
D(mm)		20		23	30		35	20		23	30		35	20		23
Weight(Kg)	welding	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/
	Flange	3	3.5	4	5	6	7	3.5	4	4.5	5.5	6.5	8	4.5	5	6

Technical Parameters

model		TB3	TB5	TB6	TB11	TBY16
Connection Type		Threaded, welded, fabricated flanges				Integral flange
Installation		Any direction
Maximum working pressure difference (PMX)	(A)	16bar	21bar	65bar
