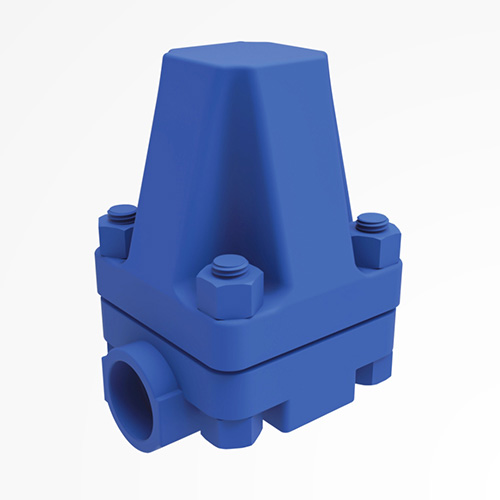

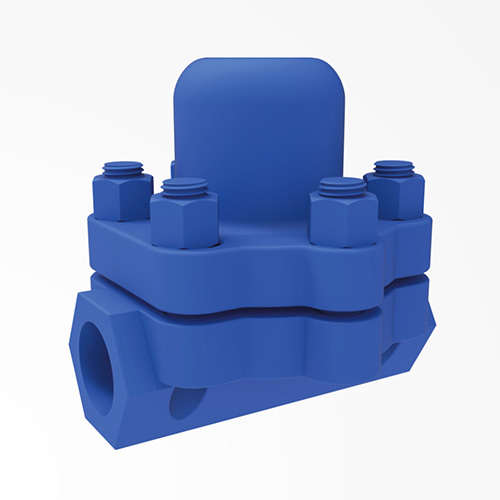

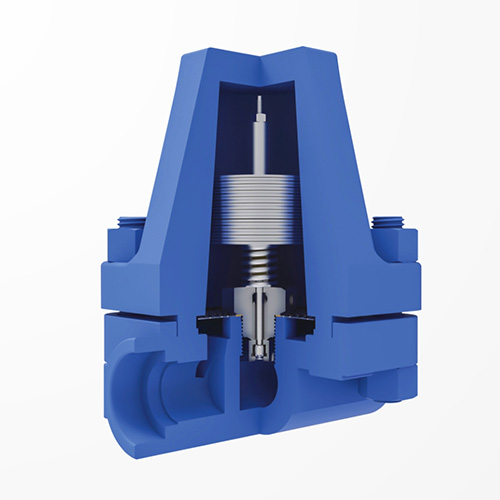

SM Series Bimetallic Thermostatic Steam Traps

Product Description

Materials	Restrictions (spherical ink)
• Valve body, valve cover: A105, F11 • Valve seat: Martensitic stainless steel • Valve disc: Martensitic stainless steel • Bimetallic: chromium-nickel stainless steel • Other internal parts: stainless steel	Design pressure (PMA): • SM45: 110 bar • SM65: 160 bar	Maximum operating pressure (PMO) @ maximum operating temperature (TMO) • SM45 type: 45bar @ 450℃ • SM65 type: 65bar @ 475℃
Notice
The SM type should be installed horizontally, ensuring that the bimetallic element is horizontal and the valve cover is at the top. When arc welding the steam trap to the pipeline, there is no need to remove the bimetallic element.

Technical Parameters

Model		SM45	SM65

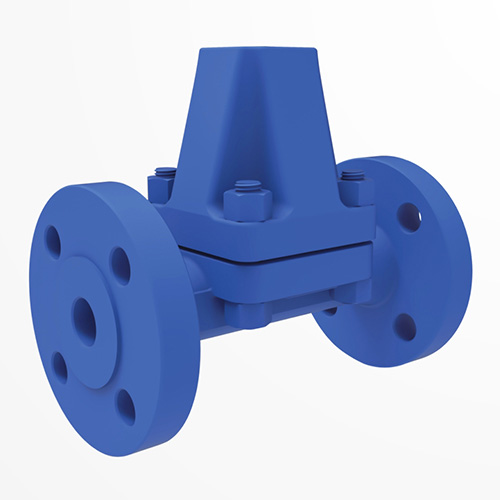

Connection type		Welding and flange preparation
Installation		Any direction
Maximum working pressure difference (PMX)	(A)	45bar	65bar

Dimensions/Weight (approximate) mm and Kg

Model		SM45(F)						SM65(F)
Nominal diameter		15	20	25	32	40	50	15	20	25	32	40	50
A(mm)		130			150		/	140			190		/
A1(mm)		210	230		260			230			260
B(mm)		138			146			130
C(mm)		102						118
D(mm)		24			30			30
Weight(Kg)	welding	5			6			/
	Flange	7	8	9	11	12	13	10	11	13	15	16	17
