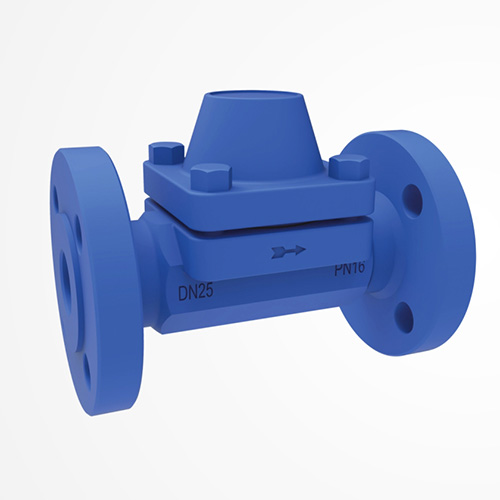

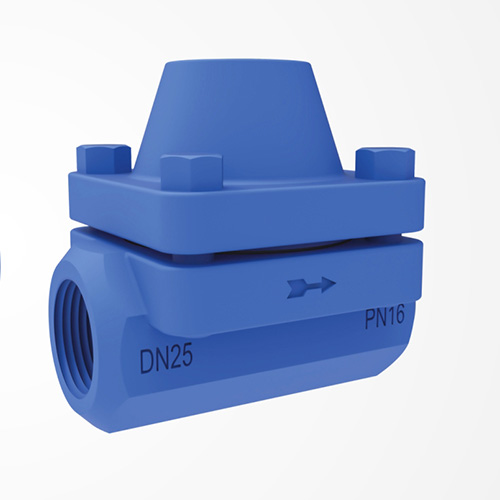

BPM Series Pressure Balanced Steam Traps

Wafer Check Valve

Working principle

A check valve is a valve that automatically opens and closes the valve disc depending on the flow of the medium itself to prevent the medium from flowing back. It is also called a non-return valve, one-way valve, reverse flow valve, and back pressure valve. It is a type of automatic valve.

Wafer check valves are designed to be installed between flanges and are suitable for various fluids in process pipes, hot water systems, steam and condensate systems.

Note: Wafer check valves are not suitable for applications with severe pulsation, such as compressor outlets.

MFP14 Three Pump Combination Device

Rated displacement

MFP14 three-pump combination

DN80-18000Kg/h

The rated displacement is 8 bar power pressure and 4 meters head. For specific displacement, see MFP14-DN80*50 pump displacement x3.

HR Series Replaceable Valve Seat Thermodynamic Steam Traps

Horizontal installation, maximum pressure difference 260bar, maximum displacement up to 760Kg/h



Features

Online replaceable valve seat module for easy maintenance.

Highly precision ground discs ensure a tight seal.

The heat shield reduces heat radiation losses and increases the cycle time under no-load conditions, extending the service life.

Can withstand overheating, water hammer, freezing, and corrosive condensation.

The “click” sound when the disc falls into the valve seat makes it easy to check the working performance.

With built-in large filter area to ensure trouble-free operation.

SRV2S Stainless Steel Direct-Acting Pressure Reducing Valve

The SRV2S stainless steel direct-acting pressure reducing valve is compact and suitable for steam or gas systems such as compressed air. All parts in contact with the medium are made of stainless steel.

LSZ Series Combined Universal Steam Trap Station

Features

LSZ series steam trap station consists of universal connector with filter and stop valve and other valves. The corresponding configuration can be selected according to different working conditions to form the steam trap station. Different steam users can choose different steam traps and pipe connectors to install the steam trap station and meet the horizontal/vertical installation requirements.
