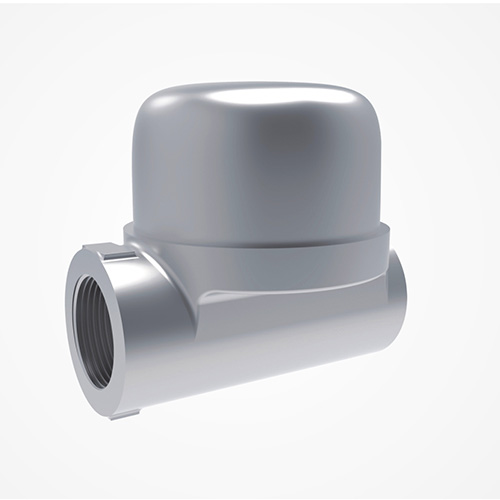

Horizontal installation, maximum pressure difference 30bar, maximum displacement: (cold water 2600Kg/h), (hot water 1800Kg/h)
Features
Fully sealed design, compact structure.
Resistant to water hammer.
Horizontal installation, maximum pressure difference 30bar, maximum displacement: (cold water 2600Kg/h), (hot water 1800Kg/h)
Features
Fully sealed design, compact structure.
Resistant to water hammer.
| Materials | Restrictions | Notice |
| • Valve body, valve cover: austenitic stainless steel • Valve seat: stainless steel • Valve disc: stainless steel • Liquid capsule: stainless steel • Other internal parts: stainless steel | • Design pressure (PMA): 50bar • Maximum operating pressure (PMO): 30bar • Maximum operating temperature (TMO): 285℃ | The steam trap should be installed horizontally, ensuring that the liquid capsule is in a horizontal position and the valve cover is at the top. There should be a cooling section upstream of the steam trap. When using an arc torch to connect the steam trap to the pipeline, there is no need to remove the liquid capsule. For easy maintenance and replacement, suitable stop valves should be installed upstream and downstream of the steam trap. |
Technical Parameters
| model | SBP30(F) | ||||
| Connection Type | 15 | 20 | 25 | ||
| Installation | Any direction | ||||
| Subcooling | 5℃ | 15℃ | |||
| Maximum working pressure difference (PMX) | (A) | 30 bar | |||
Dimensions/Weight (approximate) mm and Kg
| model | SM45(F) | |||
| Nominal diameter | 15 | 20 | 25 | |
| A(mm) | 80 | / | ||
| A1(mm) | 150 | 160 | ||
| B(mm) | 20 | |||
| C(mm) | 56 | |||
| D(mm) | 63 | |||
| Weight(Kg) | Thread | 1 | ||
| Flange | 2.2 | 2.4 | 3 | |
