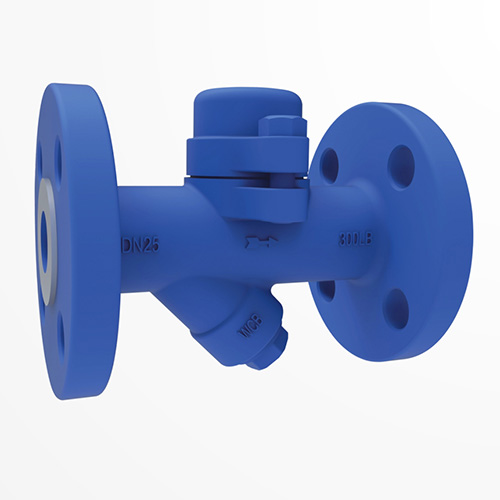

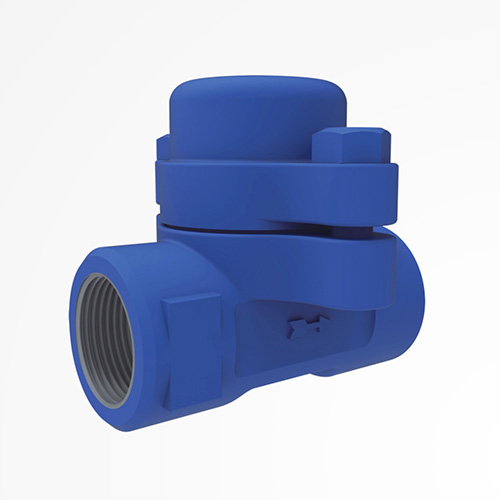

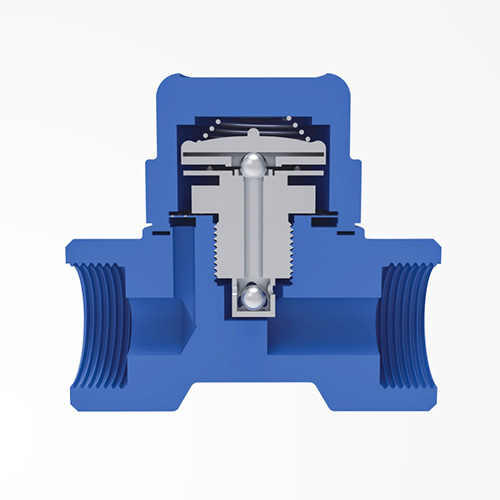

BPC Series Pressure Balanced Thermostatic Steam Traps

Product Description

Materials	Selection	Restrictions	Installation Instructions
• Valve body, valve cover: A105, F304 • Valve seat: stainless steel • Valve disc: stainless steel • Liquid capsule: 5℃℃, 15℃ optional • Other internal parts: stainless steel	•Built-in stainless steel check valve (add CV after the model number)	• Design pressure (PMA): 50bar • Maximum operating pressure (PMO): 32bar • Maximum operating temperature (TMO): 400℃	When condensate is discharged into a condensate recovery line with back pressure, it is recommended to install a check valve after the trap.

Technical Parameters

model		BPC32	BPC32Y
Connection Type		Welding and flange preparation
Installation		Any direction
Maximum working pressure difference (PMX)	(A)	32 bar

Dimensions/Weight (approximate) mm and Kg

model		BPC32(F)						BPC32Y(F)
Nominal diameter		15	20	25	32	40	50	15	20	25	32	40	50
A(mm)		95			/			100			/
A1(mm)		150		160	210	230		150		160	210	230
B(mm)		64
C(mm)		95
D(mm)		17	19	23	30			17	19	23	30
E(mm)		/						60		65
Weight(Kg)	Thread	1.7		2	/			1.7		2	/
	Flange	3	3.5	4.2	5.5	6	7	3	3.5	4.5	5.5	6	7
