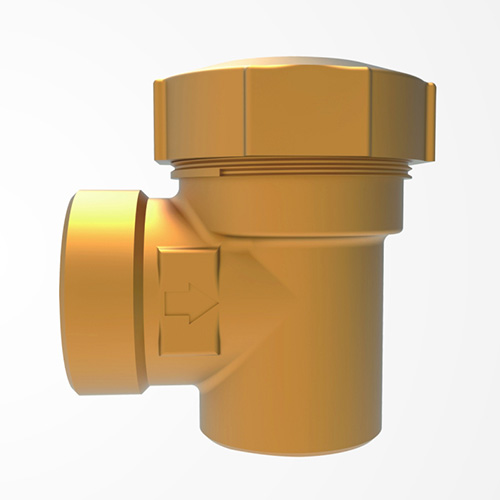

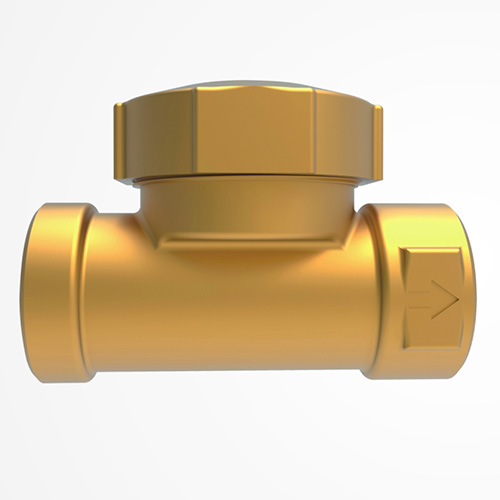

BPT Series Pressure Balanced Thermostatic Steam Traps

Product Description

Materials	Restrictions
• Valve body, valve cover: brass • Valve seat: stainless steel • Liquid capsule: 5℃℃, 15℃ optional • Other internal parts: stainless steel	• Design pressure (PMA): 16bar • Maximum operating pressure (PMO): 13bar • Maximum operating temperature (TMO): 225℃

Technical Parameters

model		BPT13A	BPT13S
Connection Type		Thread
Installation		Any direction
Maximum working pressure difference (PMX)	(A)	13bar

Dimensions/Weight (approximate) mm and Kg

model		BPT13A		BPT13S
Nominal diameter		15	20	15	20
A(mm)		20	27	14	20
A1(mm)		/		76	80
B(mm)		38	40	/	/
C(mm)		53		34
Weight(Kg)	Thread	0.4		0.45
