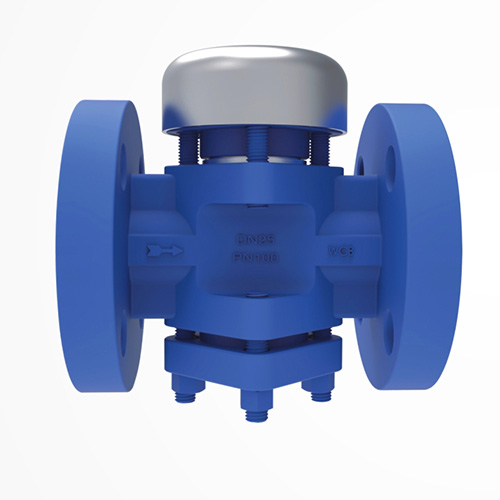

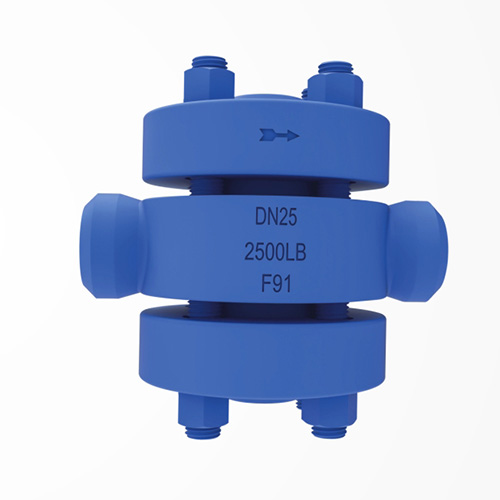

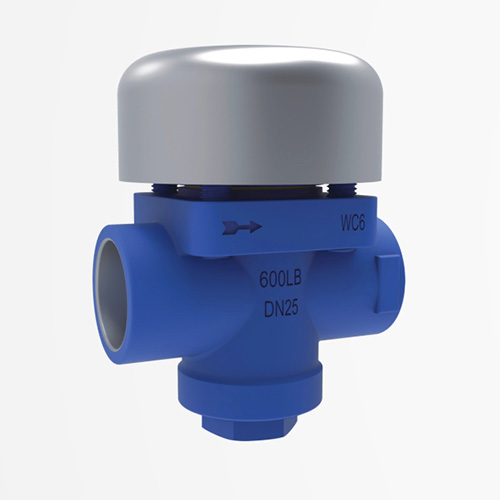

Maximum pressure difference 250bar, maximum displacement up to 450Kg/h
Features
The “click” sound when the disc falls into the valve seat makes it easy to check the working performance.
With built-in filter and replaceable valve seat, easy maintenance.
| Materials | Restrictions | |
| • Valve body, valve cover: alloy steel • Valve seat: chrome steel • Valve disc: chrome steel • Other internal parts: stainless steel | Design pressure (PMA) • TD62: 103 bar • TD120M: 250 bar | Maximum operating pressure (PMO) @ maximum operating temperature (TMO) • TD62 type: 62bar@482℃ • TD120 type: 250bar@300℃ |
| Note: | ||
| TD120M is equipped with a precision filter to prevent dirt interference and is suitable for superheated steam main pipe drain. TD62LM is a specially designed small displacement type, suitable for superheated steam or saturated steam main pipe drain. The heat shield is provided as a standard configuration to prevent the steam trap from excessive heat loss caused by external low temperature, wind and rain and other conditions. | ||
Dimensions/Weight (approximate) mm and Kg
| model | TD62M(PF) | TD62MF | TD120M(F) | |||||||||
| Nominal diameter | 15 | 20 | 25 | 32 | 40 | 15 | 20 | 25 | 15 | 20 | 25 | |
| A(mm) | 92 | 100 | / | 175 | ||||||||
| A1(mm) | 190 | 230 | 150 | 160 | 240 | 260 | ||||||
| B(mm) | 52 | 50 | 72 | 71 | ||||||||
| C(mm) | 80 | 85 | 88 | 75 | ||||||||
| D(mm) | 92 | 118 | ||||||||||
| Weight(Kg) | Thread | 2.1 | 2.5 | / | 11 | |||||||
| Flange | 7.5 | 7.5 | 8 | 11 | 12 | 8.5 | 8.5 | 9 | 18 | 22 | ||
Technical Parameters
| model | TD62M | TD62LM | TD120 | |
| Connection Type | Welding and flange preparation | |||
| Installation | Horizontal →, vertical ↓ (best to install horizontally) | |||
| Maximum working pressure difference (PMX) | (WITH) | 1.4bar | 8bar | |
| (A) | 62bar | 250bar | ||
