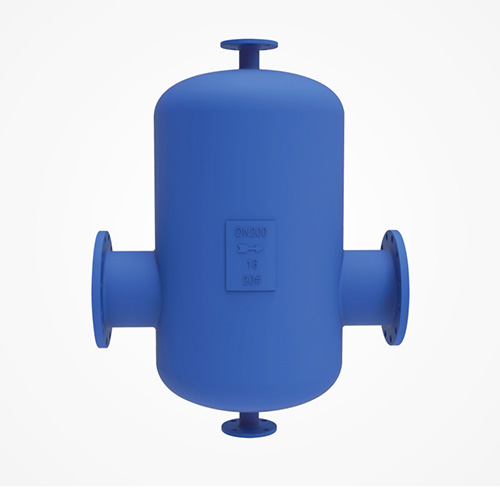

Steam Water Moisture Separator

Product Description

Restrictions (carbon steel/stainless steel)	Install
• Design pressure (PMA): 64bar • Maximum operating pressure (PMO): 64bar • Maximum operating temperature (TMO): 350°C	To ensure effective removal of condensate, it is necessary to install suitable steam traps and air vents. For steam, install FT float steam traps and AV air vents. For compressed air/gas applications, install CA air traps. Note: It is necessary to install an equalizing pipe between the CA trap and the main line or the top of the separator.

Technical Parameters

model	S7
Maximum allowable pressure	63 bar
Maximum allowable temperature	350℃
Connection Type	Flange

Dimensions/Weight (approximate) mm and Kg

model	S7
Nominal diameter	25	32	40	50	65	80	100	125	150	200	250	300	350	400
A(mm)	250	320	320	360	360	450	520	650	705	740	850	900	950	1050
B(mm)	130	170	170	230	230	270	310	310	340	370	450	520	540	650
C(mm)	220	280	280	320	320	380	440	480	530	580	750	880	910	1000
