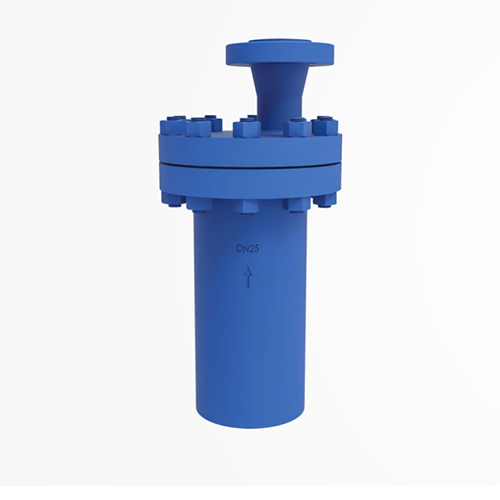

Vertical installation (bottom inlet, top outlet) maximum pressure difference 186 bar, maximum displacement up to 2948 kg/h
Materials
Valve body, valve cover: F22
Valve seat: Martensitic stainless steel
Valve disc: Martensitic stainless steel
Other internal parts: stainless steel

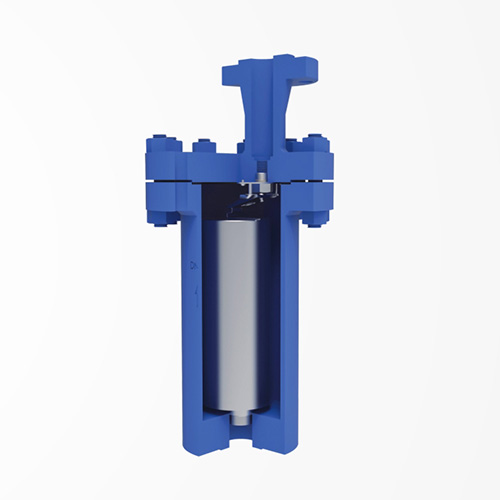

| Design parameters | Model 515: 260 bar |
| Model 515: 260 bar | |
| Model 517: 420 bar |
| Selection | Restrictions (Alloy) | Installation Instructions |
| •Built-in stainless steel check valve (CV) | Maximum operating pressure (PMO) @ maximum operating temperature (TMO) • 513 type: 103bar @ 510℃ • 515 type: 124bar @ 510℃ • 517 type: 186bar @ 482℃ | Keep the valve body vertical during installation to ensure vertical up and down movement of the bucket. |
| Operation in overheating condition | For superheated steam |
| Under normal working conditions, what generally enters the inverted bucket steam trap is saturated steam and condensate. Superheated steam may also enter, but its speed is basically equal to the condensation speed of steam in the valve. Therefore, regardless of the superheat, the steam trap is always at saturated temperature (or slightly lower). | Do not oversize the orifice; limiting the orifice size is advisable. Specific ground discs and seats, as well as extended inlet pipes and check valves. Provide a header pipe of sufficient diameter and length. Provide sufficient length of inlet pipe to keep the trap below the main line. Do not insulate the trap or inlet pipe. |
Dimensions/Weight (approximate) mm and Kg
| model | 513W(FW) | 515W(FW) | 517W(FW) | ||||||
| Nominal diameter | 15 | 20 | 25 | 20 | 25 | 32 | 25 | 32 | |
| A(mm) | 370 | 425 | 620 | ||||||
| A1(mm) | 475 | 530 | 750 | ||||||
| B(mm) | 150 | 190 | 215 | ||||||
| C(mm) | 33 | 45 | 45 | ||||||
| Weight(Kg) | Thread | 42 | 72 | 130 | |||||
| Flange | 45 | 79 | 136 | ||||||
Technical Parameters
| model | 513 | 515 | 517 | |
| Connection Type | Welding and flange preparation | |||
| Installation | vertical | |||
| Maximum working pressure difference (PMX) | (A) | 55bar | 93 bar | 138bar |
| (B) | 83 bar | 124bar | 172bar | |
| (C) | 103bar | / | 186bar | |
Please specify the following when ordering:
Model
Nominal diameter
Minimum and maximum working pressure difference
Connection method and standard
Options
