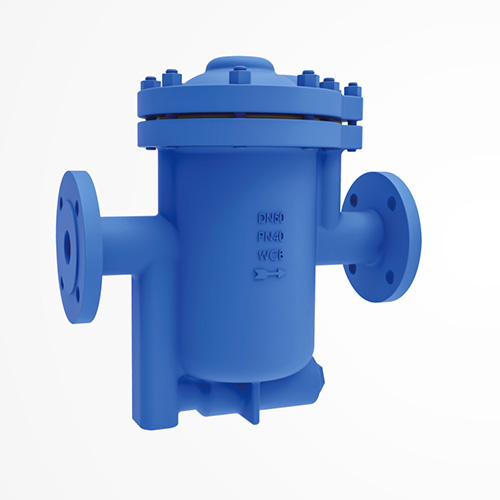

ERH Series Pilot Inverted Bucket Steam Trap Valve

Horizontal installation (side inlet and side outlet) maximum pressure difference 25bar, maximum displacement up to 9000Kg/h

Features

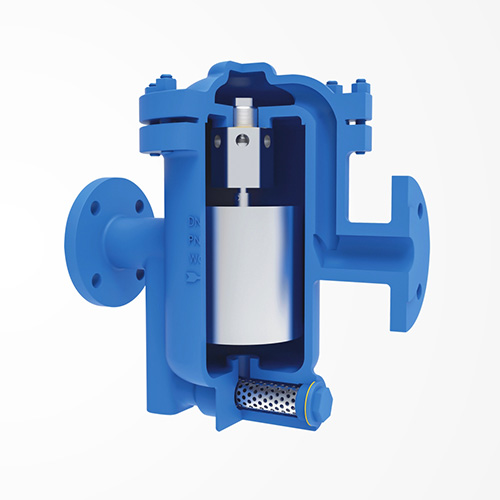

The double steam-water separation mechanism (the working principle of the U-shaped channel and the inverted barrel) ensures the separation of steam and water without steam entrainment and leakage.

SCCV closes flexibly, with less wear and longer service life.

An extra-large discharge design is added based on the SCCV design, so that the pilot valve disc and the main valve disc can work separately and independently to respond to changes in the amount of condensate generated.

Get A Quote

Product Description

Features	Restrictions	Materials
The double steam-water separation mechanism (the working principle of the U-shaped channel and the inverted barrel) ensures the separation of without steam entrainment and leakage.SCCV closes flexibly, with less wear and longer service life . An extra-large discharge design is added based on the SCCV design, so that the pilot valve disc and the main valve disc can work separately and independently to respond to changes in the amount of condensate generated.	Design Pressure(PMA): ERH118: 25 bar ERH120: 40bar Maximum operating pressure (PMO) @ maximum operating temperature (TMO) ERH118: 16bar@260℃ ERH120: 25bar@399℃	Valve body:WCB/CF8 Valve seat: Martensitic stainless steel Valve disc: Martensitic stainless steel Other internal parts: stainless steel
Installation Instructions
Keep the valve body vertical during installation to ensure the vertical movement of the bucket. The inlet and outlet of the valve are horizontal, and the steam trap is installed below the drainage point to maintain the water seal in the valve.

Technical Parameters

model		ERH118	ERH120
Connection Type		Welding, flange
Installation		Level ⇌
Maximum working pressure difference (PMX)	(A)	10bar	1.5 bar
	(B)	16bar	3bar
	(C)	/	5 bar
	(D)	/	8bar
	(AND)	/	16bar
	(F)	/	25 bar

Dimensions/Weight (approximate) mm and Kg

model		ERH118(F)			ERH120(F)
Nominal diameter		32	40	50	40	50	65	80	100
A(mm)		280			320
A1(mm)		350			100
B(mm)		205			210
C(mm)		340			430
D(mm)		215			234
Weight(Kg)	welding	20			39
	Flange	23	23.5	24	43	44	46	48	50
