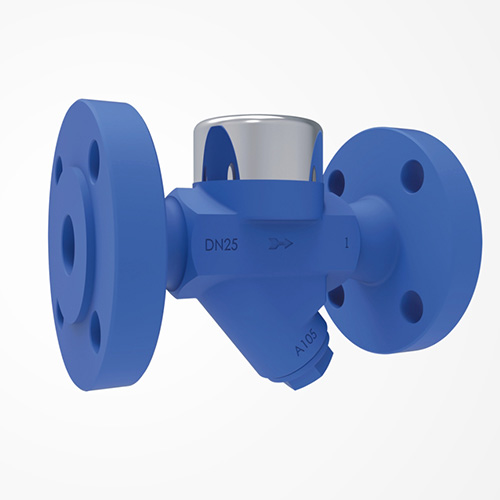

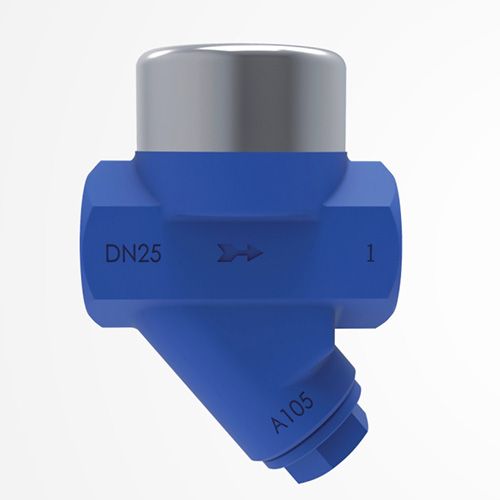

A Series Replaceable Valve Seat Thermodynamic Steam Traps

Product Description

Restrictions
• Design pressure (PMA) • Type A46: 63bar • Type A65: 110bar	• Maximum operating pressure (PMO) @ maximum operating temperature (TMO) • A46 type: 45bar@399℃ • A65 type: 65bar@475℃

Technical Parameters

model		A46	A65
Connection Type		Threaded, welded, fabricated flanges
Installation		Horizontal →, vertical ↓ (best to install horizontally)
Maximum working pressure difference (PMX)	(WITH)	0.3 bar
	(A)	46 bar	65bar

Dimensions/Weight (approximate) mm and Kg

model		A46S(F)/A65S(F)
Nominal diameter		15	20	25	32	40	50
A(mm)		90			/
A1(mm)		150	165	190	210		220
B(mm)		65
C(mm)		50
D(mm)		62
Weight(Kg)	Thread	2.2			/
	Flange	6	7	8	11	12	14
