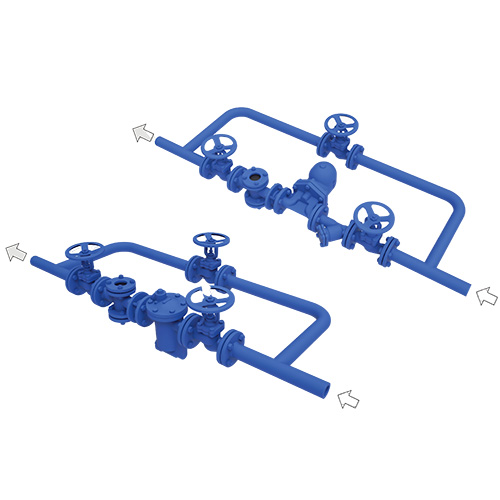

PTSZ Series Bypass Steam Trap Station

Product Description

part	Selection	Available materials	Select the following steam traps to form a steam trap station
• Isolation valve 3 pcs • Y-type strainer 1 pc • Steam trap 1 pc • Check valve 1 pc (optional) • Sight glass 1 pc (optional) • Check valve 1 pc (optional)	•Filter •Check valve •Sight glass •Check valve	• Carbon steel: A216-WCB • Stainless steel: CF8, CF3M • High temperature steel: WC6, WC9	• Inverted bucket: 680, 600, 990, ES, ER series • Float: FT, SFT, KDF, MSF series • Thermodynamic: TD, HR, A series
