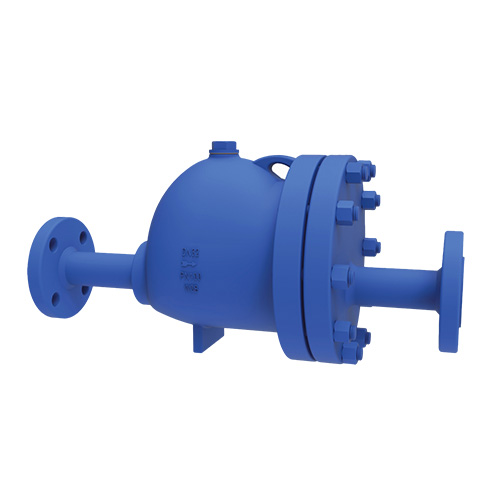

GH Series Float and Thermostatic Steam Trap

Product Description

Restrictions
Design Pressure(PMA):	Maximum operating pressure (PMO) @ maximum operating temperature (TMO)
GH3 type: 100bar	GH3 type: 45bar@399°C
GH5 type: 40bar	GH5 type: 21bar@399℃

Technical Parameters

Model		GH3	GH5
Connection Type		Welding and flange preparation
Installation		Horizontal connection →
Maximum working pressure difference (PMX)	(A)	10bar	10bar
	(B)	16bar	16bar
	(C)	21bar	21bar
	(D)	45bar	/

Dimensions/Weight (approximate) mm and Kg

Model		GH3										GH5
Nominal pressure		PN50				PN110						PN40
Nominal diameter		25	32	40	50	25	32	40	50	65	80	50	65	80	100
A(mm)		427		437	457	520						570
B(mm)		115										100
C(mm)		245										305
D(mm)		230										250
Weight(Kg)	Flange	32	33	35	38	40	41	42	44	46	48	40	42	44	48
