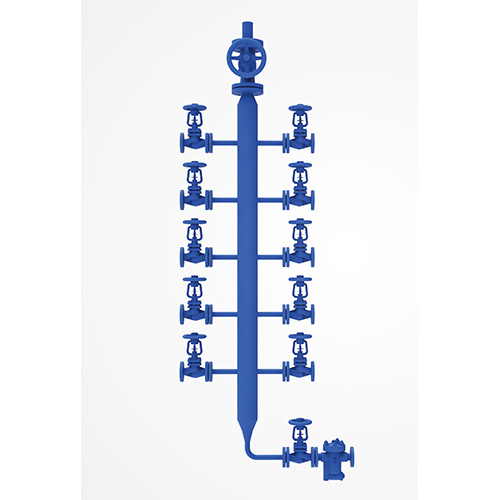

VCM Series Combined Steam Distribution Station

Features

The VCM series combined steam distribution station is a complete set of equipment that integrates all steam supply valves on the distributor: centralized steam supply, standardized components, simplified installation, and space saving. It is recommended to install the steam inlet at the top and the steam trap group at the bottom.

Application: Mainly used for centralized distribution and transportation of steam in industrial steam systems such as petroleum refining, chemical industry, textile raw material chemical industry, coal chemical industry and pharmaceutical industry.

Save on-site assembly time, save on engineering costs and purchase costs

Flexible and convenient design and installation

Long service life

Replacement and maintenance are convenient, simple and faster. The overall tube bundle can be interchanged and independent accessories can be replaced. It can be flexibly adjusted according to the design working conditions.

Get A Quote
Product Description

The top is equipped with a bellows stop valve to ensure zero leakage at the packing and maintenance-free

Material: Pressure rating: Connection Number of branches:
Carbon steel, stainless steel 150Lb/300Lb • Main pipe: DN40 flange, socket weld
• Branch pipe: DN15/DN20 flange, socket weld, flange, ferrule		 4, 6, 8, 10, 12, 14 are available

The bottom is equipped with a steam trap to remove condensate.
