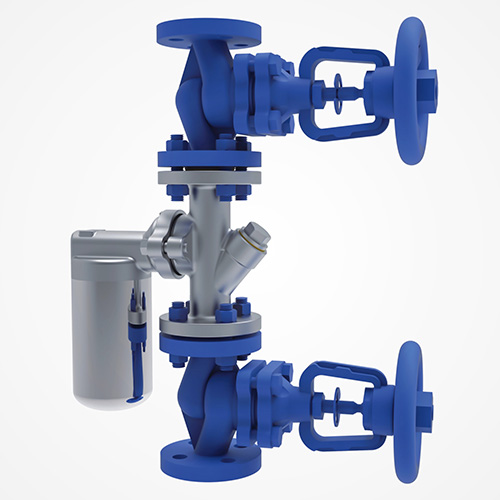

LSZ Series Combined Universal Steam Trap Station

Product Description

part	Applicable steam trap	Available models	Selection	Restrictions
• Isolation valve 2 pcs . • Connector 1 pc. • Steam trap 1 pc. • Check valve 1 pc. (optional) • Check valve 1 pc. (optional) • Sight glass 1 pc. (optional)	• Inverted barrel: 2000 series • Thermodynamic: A series • Thermostatic: SM, BP series	•LSZ: threaded connection •LSZW: socket welding/butt welding •LSZF: flange connection Installation method: universal	•Outlet check valve •Outlet sight glass •Check valve	• Design pressure (PMA): 40bar • Maximum operating pressure (PMO): 32bar • Maximum operating temperature (TMO): 343°C

LSZ series technical parameter table

Steam Trap Station Model	Matching steam trap series	Nominal diameter	Pressure level	Connection	Installation
LSZ-2000	2000 Series Inverted Bucket Steam Trap	DN15-DN25	PN16-PN40	Thread	Any direction
LSZ-SMC	SM Series Thermostatic Steam Trap			welding
LSZ-BPC	Bp Series Thermostatic Steam Trap			Flange

Explore More

RELATED PRODUCTS

ER Series Pilot Inverted Bucket Steam Traps Lever

Horizontal installation (low inlet and high outlet) or vertical installation (bottom inlet and top outlet) with maximum pressure difference of 80 bar and maximum displacement of 4000 kg/h

Features

This valve absorbs the advantages of pilot type and lever type inverted bucket, making its structure more perfect and its performance better.

Its working principle is a combination of pilot-operated and lever-operated inverted barrels.

The built-in filter fairing effectively avoids interference from impurities and prevents the impact of high-pressure water flow on the bucket movement.

SFT43 Series Float Steam Trap

Maximum pressure difference 14bar, maximum displacement up to 31000Kg/h

Features

The upper and lower double valve discs in a balanced state are subjected to the same surface pressure inside the valve body, and only a small force is required to open them. Even if the volume of the float is reduced, the large displacement function can still be ensured.

An anti-erosion baffle is installed in the valve body to prevent the steam flow from impacting the float.

Built-in automatic air exhaust device, quick start-up without air blockage, good performance in exhausting non-condensable gases.

1800 Series Inverted Bucket Steam Traps

All stainless steel, vertical installation (bottom inlet, top outlet), maximum pressure difference 45 bar, maximum displacement up to 2000 kg/h

Features

The 1800 series steam trap can quickly replace other types of horizontal side-inlet and side-outlet steam traps on the pipeline. It concentrates all the advantages of the inverted bucket steam trap. The horizontal side-inlet and side-outlet structure and other features make the inverted bucket steam trap work efficiently in applications such as heating lines/drainage lines/heating and processing.

Good cleaning performance

Continuous air exhaust performance

Closed design, compact structure

Long service life and high reliability

LTS Type Integrated Universal Connector

Features

LTS universal connector – combines inlet and outlet isolation valves and filters in one unit and is suitable for various types of steam traps

Eliminate potential leak points

With filter drain valve

Equipped with test port to facilitate checking the working status of the steam trap

Made of stainless steel, durable

One-piece design provides accurate structural length and greatly reduces design time

Universal connector steam trap station can match the pipeline in any direction

ST Series Replaceable Valve Seat Thermodynamic Steam Traps

Horizontal installation, maximum pressure difference 16bar, maximum displacement up to 2200Kg/h

Features

The valve seat drain holes are set to three evenly distributed holes, which ensures stable operation and less wear on the valve seat.

Heat shield reduces dry hits.
