Rated displacement

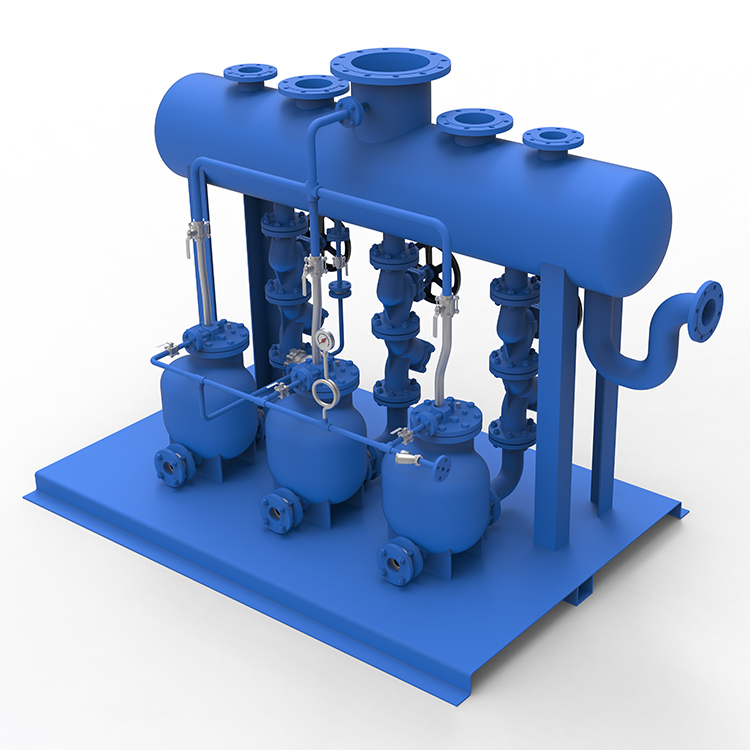

MFP14 three-pump combination
DN80-18000Kg/h
The rated displacement is 8 bar power pressure and 4 meters head. For specific displacement, see MFP14-DN80*50 pump displacement x3.
Rated displacement
MFP14 three-pump combination
DN80-18000Kg/h
The rated displacement is 8 bar power pressure and 4 meters head. For specific displacement, see MFP14-DN80*50 pump displacement x3.
| Restrictions (three-pump combination) | • Pump design condition: PN16 • Pump diameter: DN80*DN50 • The water tank is an open container and cannot bear pressure. • Maximum dynamic pressure: steam, air or other gas 13.8bar • Standard pump working fluid specific gravity: 0.8-1.0 • Displacement per pump cycle: 19.3L (average)/single pump |
MFT14-DN80*DN50 three-pump combination configuration table
| Parts Name | Part number | Specification | quantity |
| Automatic pump | MET14 | DN80*DN50 | 3 |
| Check valve (pump inlet) | H71H | DN80 | 3 |
| Check valve (pump outlet) | DN50 | 3 | |
| Steam Trap | FTGS14 | DN15 | 1 |
| Filter (Pump Inlet) | YG45H | DN80 | 3 |
| Filter (power steam inlet) | YG45H | DN40 | 1 |
| Ball valve (trap outlet) | Q11H | DN15 | 1 |
| Ball valve (exhaust gas) | Q11H | DN25 | 3 |
| Bellows stop valve | WJ41H | DN80 | 3 |
| Exhaust/gas hose | / | 3 | |
| Open water collection tank | / | 1 | |
Note: The overflow and drain ports must be connected to a safe location
| Device connection port | • Condensate inlet: 2*DN80, 2*DN150 • Exhaust port (to atmosphere): DN200 • Condensate outlet: 3*DN50 • Power medium inlet: DN40 • Overflow port: DN100 • Connection port: DN40 |
Single pump assembly dimensions/weight (approximate) mm and Kg
| Pump diameter | A | B | C | D | AND | F | G | H | I | J |
| N | THE | P | |
| DN50*80 | 1820 | 2300 | 1600 | 1130 | 2180 | 430 | 350 | 400 | 400 | 350 | 195 | 500 | 1900 | 1500 | 550 |
| Q | R | S | T | IN | IN | AA | BB | CC | DD | EE | FF | GG | HH | JJ | |
| 600 | 80 | 550 | 250 | 1670 | 280 | DN100 | DN150 | DN300 | DN150 | DN100 | DN40 | DN50 | DN40 | DN100 |
