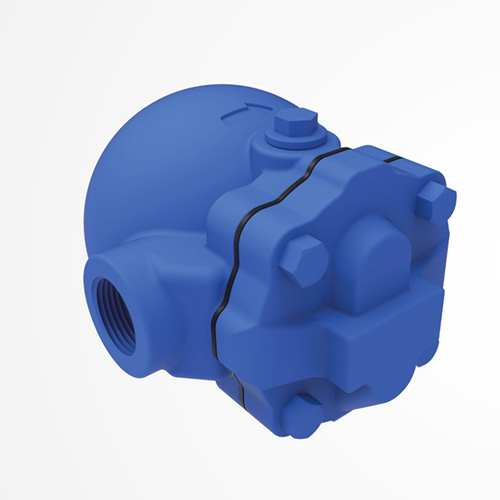

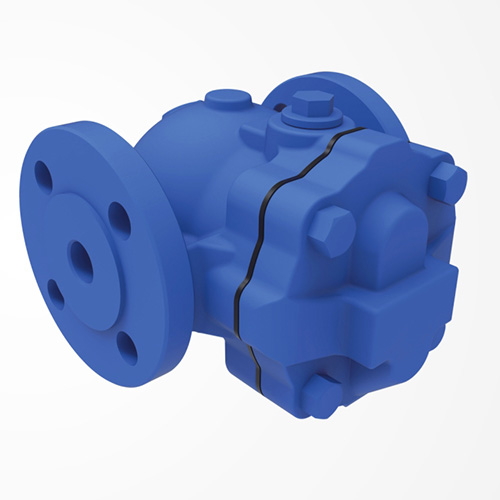

Horizontal installation, maximum pressure difference 14bar, maximum displacement up to 700Kg/h
Features
It is a continuous drainage method with excellent drainage capacity.
The structure is simple, and the internal parts are all installed on the valve cover, so they can be repaired without removing them from the pipe.
With 3/8″ internal thread balance port.
| Materials | Restrictions |
| • Valve body, valve cover: GGG40 • Valve seat: Martensitic stainless steel • Valve disc: Martensitic stainless steel • Other internal parts: Stainless steel | • Design pressure (PMA): 16bar • Maximum operating pressure (PMO): 14bar • Maximum operating temperature (TMO): 250℃ |
| Installation Instructions | |
| Note: When installing, make sure the fluid flow direction is in the direction indicated by the arrow on the valve body, and make sure that the float arm is in a horizontal position to ensure that the float can rise and fall freely vertically. One of the advantages of this float type steam trap for air and gas systems is that it can work properly without a bleed hole. However, a separate balancing pipe is required to prevent air or gas lock. Make sure that the balancing pipe is connected upstream of the steam trap. The balancing pipe is very important for the correct operation of the product. For easy maintenance, it is recommended to install a union on the balancing pipe close to the steam trap cover. | |
Technical Parameters
| model | CA14S | ||
| Connection Type | Threaded, integral flange | ||
| Installation | Level ← | ||
| Maximum working pressure difference (PMX) | (A) | 14bar | |
Dimensions/Weight (approximate) mm and Kg
| model | CA14S | ||||||
| Connection Type | Thread | Flange | |||||
| Nominal diameter | 15 | 20 | 25 | 15 | 20 | 25 | |
| A(mm) | 121 | 145 | 150 | 160 | |||
| B(mm) | 107 | 117 | 107 | 117 | |||
| C(mm) | 67 | 75 | 101 | 70 | |||
| D(mm) | 147 | 166 | 162 | 170 | |||
| Weight(Kg) | Thread | 3 | 3 | 4 | / | ||
| Flange | / | 4.5 | 5 | 6.5 | |||
