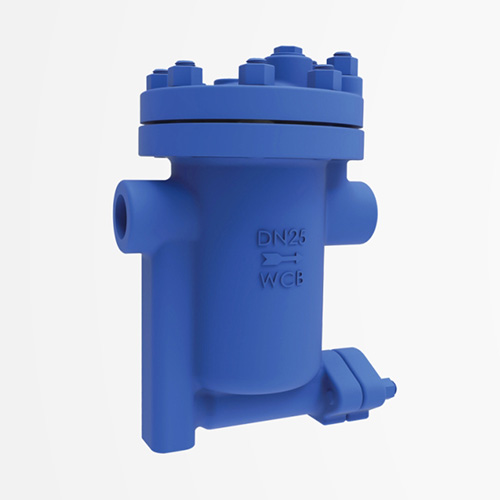

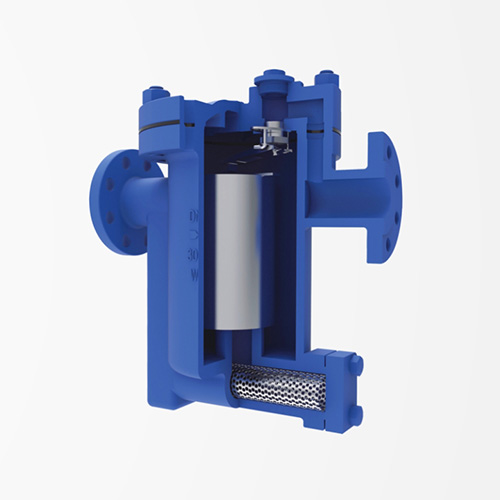

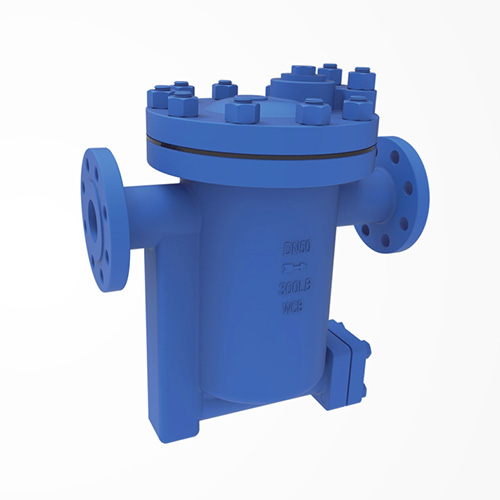

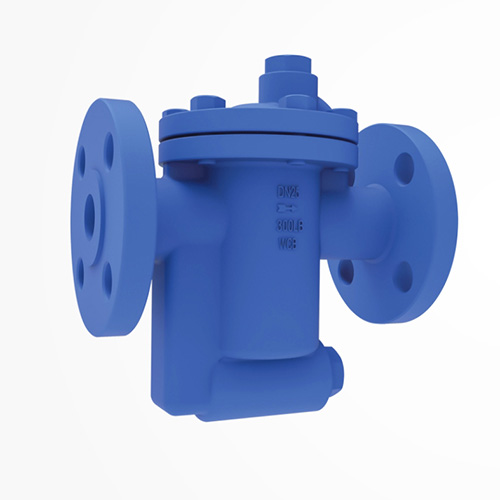

990 Series Inverted Bucket Steam Trap

AV Series Steam System Exhaust Valve

Working principle

Air and other non-condensable gases can cause many problems in steam systems. Not only will the warm-up time be prolonged, but the temperature of a steam-air mixture will be lower than that of pure steam at the same pressure. Air will form a gas film that reduces heat transfer efficiency, leading to increased fuel consumption, and these gases are also the main cause of pipeline corrosion. Using a steam system air vent valve can remove air and other non-condensable gases from the steam system without leaking steam.

401-SH 501-SH Series Inverted Bucket Superheated Steam Traps

Vertical installation (bottom inlet, top outlet) Maximum pressure difference 105 bar, maximum displacement up to 430 kg/h



Features

401-SH/501-SH series inverted bucket superheated steam traps are specially designed to overcome various unfavorable factors such as overheating, high pressure and low load.

In order to make the steam trap work properly under extremely harsh working conditions, the valve adopts a unique inverted bucket type steam trap with a water collection chamber. The water collection chamber collects enough condensate to ensure that the water seal can be maintained during the entire discharge cycle. The small cup in the water collection chamber can float up and down at the side steam pipe mouth. When the condensate rises, it seals the steam inlet pipe. The condensate flows into the valve. Since the water collection chamber collects the condensate and allows steam to flow in from the bottom of the inverted bucket, the discharge valve is tightly closed during the water collection period, and there is no dripping phenomenon.

German Standard Y Type Filter

Working principle

Y-type filter is an indispensable filtering device for the pipeline system of conveying medium. Y-type filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, positioning water valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment. Y-type filter is applicable to steam, water, oil, etc.

ST Series Replaceable Valve Seat Thermodynamic Steam Traps

Horizontal installation, maximum pressure difference 16bar, maximum displacement up to 2200Kg/h



Features

The valve seat drain holes are set to three evenly distributed holes, which ensures stable operation and less wear on the valve seat.

Heat shield reduces dry hits.

DC1 Series Pressure Balanced Steam Traps

Any installation, maximum pressure difference 21bar, maximum displacement: (cold water 1100Kg/h), (hot water 630Kg/h)



Features

All stainless steel valve body and internal parts, excellent corrosion resistance, light weight, compact design, easy to install.

A stainless steel filter is installed in the valve chamber, which makes maintenance simple.

Can be installed in any direction
