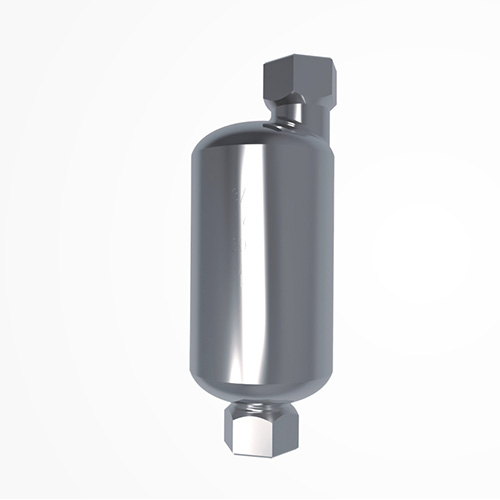

All stainless steel, vertical installation (bottom inlet, top outlet), maximum pressure difference 45 bar, maximum displacement up to 2000 kg/h
Features
Under the same conditions, the service life of the 1000 series stainless steel inverted bucket steam trap is generally 3-4 times longer than that of traditional steam traps.

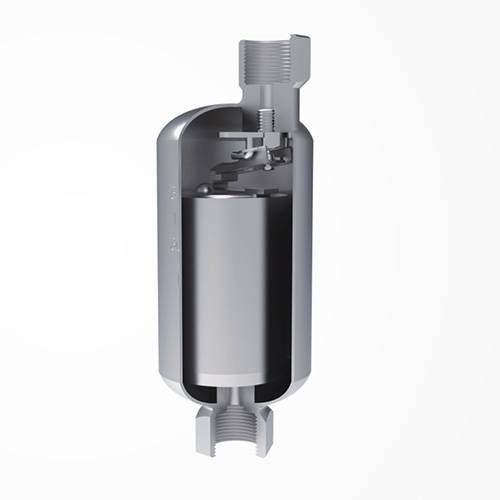

The valve hole is located at the top of the valve, so dirt will not accumulate on the valve hole
Long service life and high reliability
Closed design, compact structure
| Materials | Selection | Restrictions | Installation Instructions |
| • Valve body: SS30408 • Valve seat: Martensitic stainless steel • Valve seat: Martensitic stainless steel • Valve disc: Martensitic stainless steel • Other internal parts: Stainless steel | •Built-in stainless steel check valve (CV) •Borne pass needle (BVSW) | Maximum operating pressure (PMO) @ maximum operating temperature (TMO) • 1010, 1011: 28bar @ 427°C • 1022: 45bar @ 316°C • 1013: 31bar @ 427°C | Keep the valve body vertical during installation to ensure vertical up and down movement of the bucket. |
Dimensions/Weight (approximate) mm and Kg
| Model | 1010 | 1011 | 1013 | 1022 | ||||||||
| Nominal diameter | 15 | 20 | 15 | 20 | 25 | 15 | 20 | 25 | 15 | 20 | 25 | |
| A(mm) | 168 | 184 | 224 | 289 | ||||||||
| B(mm) | 70 | 100 | 114 | |||||||||
| K(mm) | 14 | 18 | 30 | |||||||||
| Weight(Kg) | Thread | 0.7 | 0.8 | 2 | 3.4 | |||||||
Technical Parameters
| Model | 1010 | 1011 | 1013 | 1022 | |
| Connection Type | Thread, socket welding | ||||
| Installation | vertical | ||||
| Maximum working pressure difference (PMX) | (A) | 1.4bar | 1bar | 1bar | 1bar |
| (B) | 5.5 bar | 2bar | 2bar | 2bar | |
| (C) | 8.6 bar | 5 bar | 4.1bar | 5 bar | |
| (D) | 10.5 bar | 8.6 bar | 5.5 bar | 8.6 bar | |
| (AND) | / | 14bar | 8.6 bar | 14bar | |
| (F) | / | 17bar | 12.4bar | 21bar | |
| (G) | / | 28bar | 19bar | 41bar | |
| (H) | / | / | 31 bar | / | |
