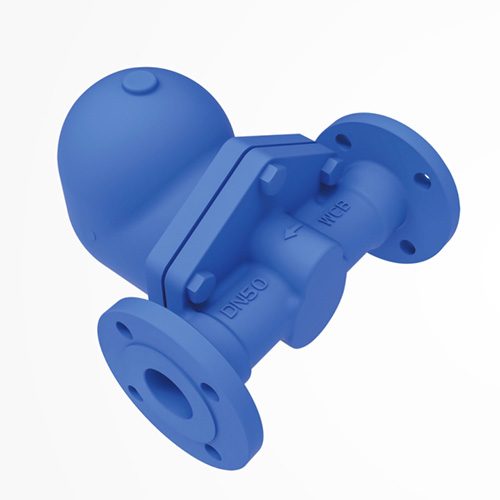

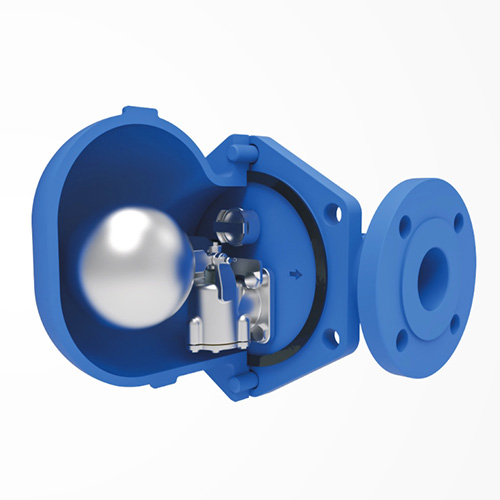

SFT45 Series Float Steam Trap

Maximum pressure difference 65bar, maximum displacement up to 70000Kg/h

Materials

Valve body, valve cover: carbon steel, alloy steel, stainless steel

Valve seat: Martensitic stainless steel

Valve disc: Martensitic stainless steel

Other internal parts: stainless steel

Get A Quote

Product Description

Restrictions:
Design Pressure(PMA):	Maximum operating pressure (PMO) @ maximum operating temperature (TMO)
•SFT45-III: 50bar	•SFT45-III: 32bar@343℃
•SFT45-IV: 110bar	•SFT45-IV: 65bar@450℃
•SFT45-V: 50bar	• SET45-V: 32bar@343℃
•SFT45-VV: 110bar	•SFT45-VV type: 65bar@450℃
Installation Instructions:
Note: During installation, make sure the fluid flow direction is consistent with the direction indicated by the arrow on the valve body, and ensure that the float arm is in a horizontal position to ensure that the float can rise and fall freely and vertically.

Dimensions/Weight (approximate) mm and Kg

Model		SFT45-Ⅲ			SFT45-Ⅳ			SFT45-Ⅴ			SFT45-ⅤⅤ				SFT45-Ⅳ			SFT45-ⅤⅤ
Nominal pressure		PN50													PN10
Nominal diameter		32	40	50	40	50	65	80	100	125	80	100	125	150	40	50	65	80	100	125
A(mm)		230			300			380			460				320			500
A1(mm)		300			320			420			500				350			550
B(mm)		130			140			200			230				160			230
C(mm)		115			125			160			190				140			190
D(mm)		240			255			340			450				280			450
Weight(Kg)	welding	24			28			36			80				33			80
	Flange	28	29	30	31	32	35	40	42	48	84	86	88	90	36	38	40	90	95	100

Technical Parameters

Model		SFT45-Ⅲ	SFT45-Ⅳ	SFT45-Ⅴ	SFT45-ⅤⅤ
Connection Type		Welding and flange preparation
Installation		Model rear belt (RL) horizontal connection from right to left←
		Model rear belt (LR) horizontal connection from left to right →
Maximum working pressure difference (PMX)	(A)	4.5 bar			21bar
	(B)	10bar			45bar
	(C)	14bar			65bar
	(D)	21bar			/
	(AND)	32 bar			/
	(F)	/	45bar	/	/
	(G)	/	65bar	/	/
