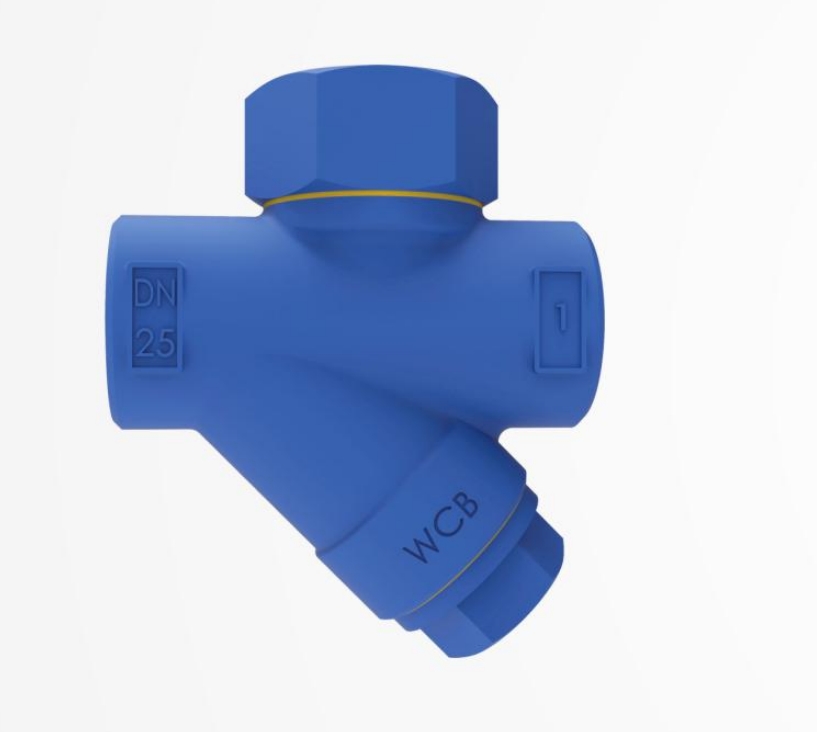

Horizontal installation, maximum pressure difference 42bar, maximum displacement up to 1800Kg/h

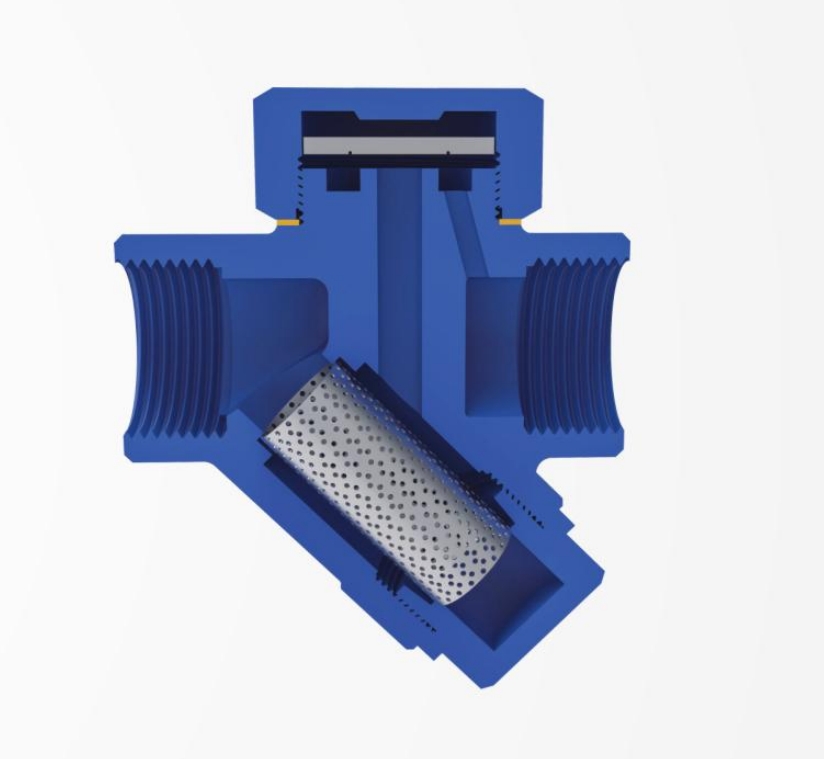

Features
Hardened stainless steel working surface, suitable for superheated steam environment.
No adjustment is required within the operating pressure range.
Compact design, easy installation and maintenance.
| Restrictions | Selection |
| Design pressure (PMA): Maximum operating pressure (PMO) @ maximum operating temperature (TMO) · TD16: 25bar · TD16: 16bar@300°C · TD25: 40bar · TD25: 25bar@375°C · TD32: 40bar · TD32: 32bar@375°C · TD42: 63bar · TD42: 42bar@399°C | Heat shield: Heat shield can prevent the trap from excessive heat loss in low temperature, wind and rain environment, which may cause the trap to operate too frequently. Integrated drain valve: Drain valve can be installed on the filter cover as an option |
| How to maintain | If a heat shield is installed, remove the shield first, then loosen the valve cover with a standard wrench. Be careful not to use an adjustable wrench or pipe clamp, otherwise the valve cap will be damaged. If the disc and valve seat surface are slightly worn, use abrasive paste and grind the disc and valve seat separately in an 8-shaped grinding motion. After grinding, clean the grinding fluid. When reassembling, the disc is located so that the groove surface contacts the valve seat surface, and tighten the valve cover. |

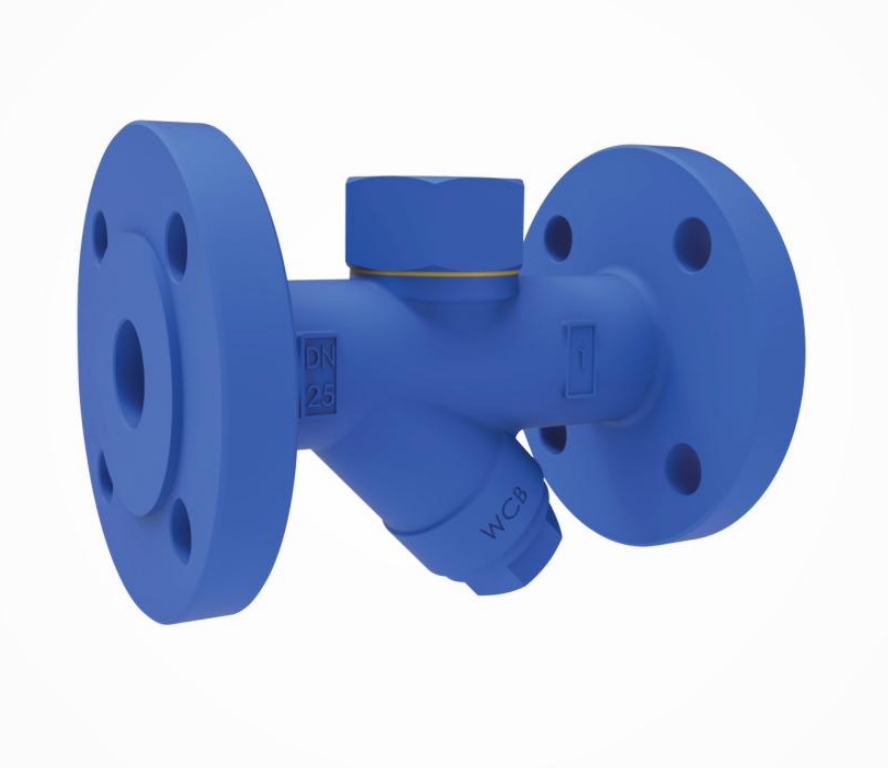

Dimensions/Weight (approximate) mm and Kg
| model | TD16(F), TD25(F) | TD32F | TD42F | ||||||||||
| Nominal diameter | 15 | 20 | 25 | 32 | 40 | 50 | 15 | 20 | 25 | 15 | 20 | 25 | |
| A(mm) | 78 | 85 | 95 | 130 | 150 | / | 90 | ||||||
| A1(mm) | 150 | 160 | 210 | 230 | 150 | 160 | 150 | 165 | 190 | ||||
| B(mm) | 55 | 60 | 65 | 70 | 80 | 90 | 45 | 50 | 55 | 70 | |||
| C(mm) | 45 | 50 | 75 | 85 | 4 | 5 | 50 | 55 | |||||
| D(mm) | 45 | 50 | 55 | 60 | 70 | 85 | 48 | 55 | 60 | 65 | |||
| Weight(Kg) | Thread | 0.8 | 1 | 1.2 | 2.6 | 3.6 | 0.9 | 1.2 | 1.4 | 2.2 | |||
| Flange | 2.7 | 3 | 3.5 | 5.5 | 6 | 7 | 3 | 3.5 | 4 | 6.5 | 7 | 8 | |
Technical Parameters
| model | TD16 | TD25 | TD32 | TD42 | |
| Connection Type | Welding and flange preparation | ||||
| Installation | Horizontal →, vertical ↓ (best to install horizontally) | ||||
| Minimum working pressure difference | (WITH) | 0.8bar | |||
| Maximum working pressure difference | (A) | 16bar | 25 bar | 32 bar | 42bar |
