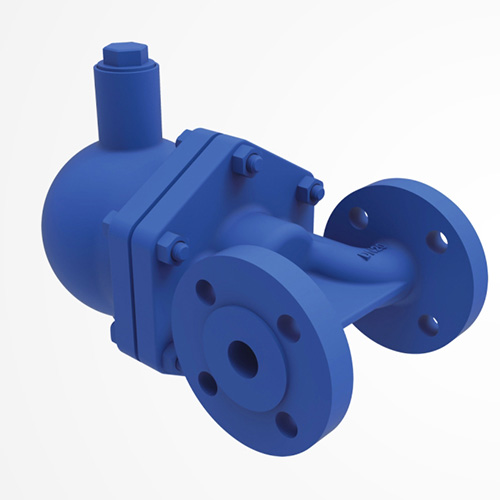

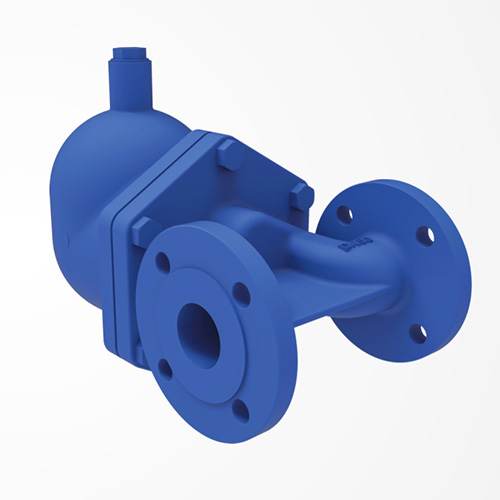

Horizontal installation, maximum pressure difference 32bar, maximum displacement up to 2800Kg/h
Features
It is a continuous drainage method with excellent drainage capacity.
The structure is simple, and the internal parts are all installed on the valve cover, so they can be repaired without removing them from the pipe.
With 1/2″ female balancing port.
| Materials | Restrictions |
| • Valve body, valve cover: carbon steel, stainless steel • Valve seat: martensitic stainless steel • Valve disc: martensitic stainless steel • Other internal parts: stainless steel | • Design pressure (PMA): 40bar • Maximum operating pressure (PMO): 32bar • Maximum operating temperature (TMO): 343°C |
| Installation Instructions Note: When installing, make sure the fluid flow direction is consistent with the direction indicated by the arrow on the valve body, and make sure that the float arm is in a horizontal position to ensure that the float can rise and fall freely. One of the advantages of this float type steam trap for air and gas systems is that it can work properly without a bleed hole. However, to prevent air or gas lock, a separate balancing pipe is required. Make sure the balancing pipe is connected upstream of the steam trap. The balancing pipe is very important for the correct operation of the product. | |
Technical Parameters
| model | CA44S | CA46S | |
| Connection Type | Integral flange | ||
| Installation | Level ← | ||
| Maximum working pressure difference (PMX) | (A) | 4.5 bar | |
| (B) | 10bar | ||
| (C) | 14bar | ||
| (D) | 21bar | ||
| (AND) | 32 bar | ||
Dimensions/Weight (approximate) mm and Kg
| model | CA44S(CA46S) | ||||||
| Nominal diameter | 15 | 20 | 25 | 32 | 40 | 50 | |
| A(mm) | 150 | 160 | 230 | ||||
| B(mm) | 80 | 115 | 130 | 140 | |||
| C(mm) | 80 | 85 | 115 | 125 | |||
| D(mm) | 215 | 225 | 280 | 335 | 350 | ||
| Weight(Kg) | Flange | 9 | 9.5 | 13 | 28 | 29 | 32 |
