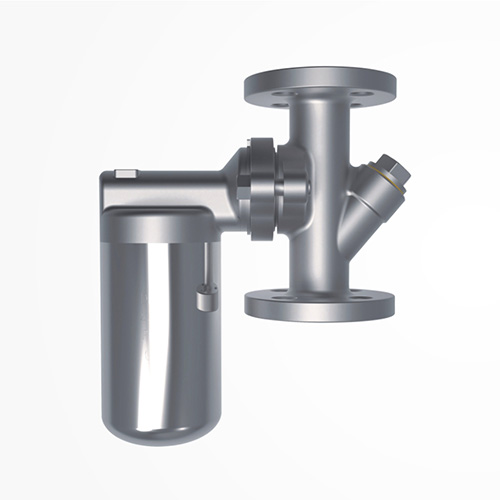

2000 Series Inverted Bucket Steam Traps

All stainless steel, with universal joint, maximum pressure difference 28bar, maximum displacement up to 590Kg/h

Features

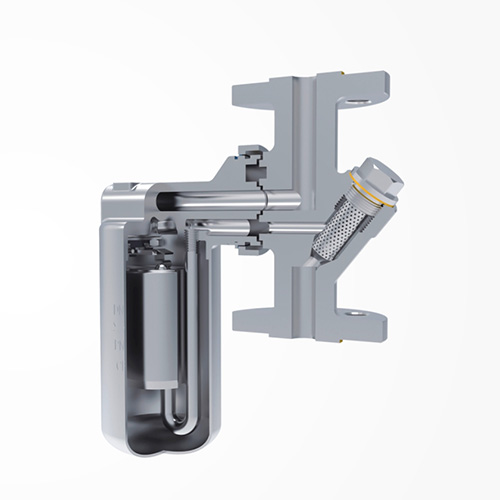

The 2000 series universal joint can quickly install the inverted bucket steam trap in any pipeline for long-term use without changing the pipeline. This not only obtains the reliability of the inverted bucket operating principle, but also has all the advantages of using an all-stainless steel structure. The universal joint also adds the feature of quick and easy replacement on the pipeline. In addition, the universal joint has a built-in filter

Fully enclosed, flexible housing

Compact and lightweight

Freeze-resistant and damage-free

Get A Quote

Product Description

Materials	Restrictions	Installation Instructions
• Valve body: SS30408 • Valve seat: Martensitic stainless steel • Valve disc: Martensitic stainless steel • Other internal parts: Stainless steel	Maximum operating pressure (PMO) @ maximum operating temperature (TMO) • 2010, 2011: 28bar @ 427°C • 2022: 45bar @ 316°C	Keep the valve body vertical during installation to ensure the vertical movement of the bucket up and down. The inlet and outlet of the valve are not level, and the steam trap is installed below the drainage point to maintain the water seal in the valve.

Dimensions/Weight (approximate) mm and Kg

model		2010			2011			2022
Nominal diameter		15	20	20	15	20	25	15	20	25
A(mm)		95
A1(mm)		160			190			230
B(mm)		68			76			108
C(mm)		113			140			187
D(mm)		170			210			240
Weight(Kg)	Thread	2.2			2.5			3
	Flange	3.5	4	4.5	4	4.5	5.5	5	5.5	6.5

Technical Parameters

model		2010	2011	2022
Connection Type		Thread, socket weld, flange
Installation		Any direction
Maximum working pressure difference (PMX)	(A)	1.4bar	2bar	20.7 bar
	(B)	5.5 bar	4.8bar	45bar
	(C)	8.6 bar	8.6 bar	/
	(D)	10.5 bar	14bar	/
	(AND)	/	17bar	/
	(F)	/	28bar	/

Please specify the following when ordering:

Model
Nominal diameter
Minimum and maximum working pressure difference
Connection method and standard
Options
