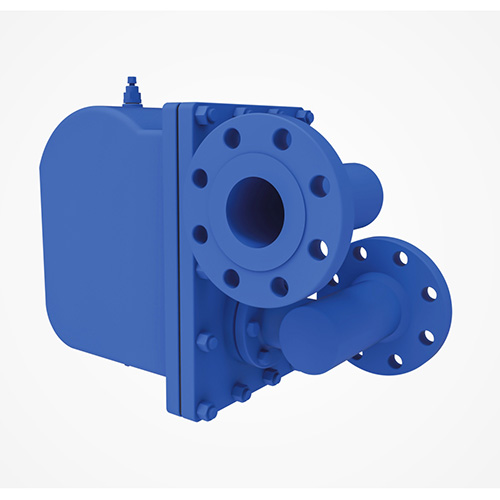

GSB Series Float Steam Trap

TB Series Bimetallic Steam Traps

Maximum pressure difference 150bar, maximum displacement up to 500Kg/h



Features

By adjusting the condensate discharge temperature, energy can be saved efficiently

Resistant to water hammer, corrosion and freezing, with excellent air exhaust performance.

Not affected by work pressure

LTS Type Integrated Universal Connector

Features

LTS universal connector – combines inlet and outlet isolation valves and filters in one unit and is suitable for various types of steam traps

Eliminate potential leak points

With filter drain valve

Equipped with test port to facilitate checking the working status of the steam trap

Made of stainless steel, durable

One-piece design provides accurate structural length and greatly reduces design time

Universal connector steam trap station can match the pipeline in any direction

401-SH 501-SH Series Inverted Bucket Superheated Steam Traps

Vertical installation (bottom inlet, top outlet) Maximum pressure difference 105 bar, maximum displacement up to 430 kg/h



Features

401-SH/501-SH series inverted bucket superheated steam traps are specially designed to overcome various unfavorable factors such as overheating, high pressure and low load.

In order to make the steam trap work properly under extremely harsh working conditions, the valve adopts a unique inverted bucket type steam trap with a water collection chamber. The water collection chamber collects enough condensate to ensure that the water seal can be maintained during the entire discharge cycle. The small cup in the water collection chamber can float up and down at the side steam pipe mouth. When the condensate rises, it seals the steam inlet pipe. The condensate flows into the valve. Since the water collection chamber collects the condensate and allows steam to flow in from the bottom of the inverted bucket, the discharge valve is tightly closed during the water collection period, and there is no dripping phenomenon.

CAGH Series Float Steam Traps

Maximum pressure difference 45bar, maximum displacement up to 10500Kg/h



Features

Balanced double valve seat design, small size and large displacement.

Equipped with DN25 flange balance pipe structure to prevent air blockage.

The float moves up and down depending on the amount of liquid flowing in, and the valve opening is automatically adjusted to discharge the liquid continuously.

25P Self Acting Pilot Valve Type Pressure Reducing Valve

The 25P is a self-acting pilot-operated pressure reducing valve. It senses downstream pressure through an external pressure sensing tube, adjusts the main valve opening, and maintains stable pressure. The valve can be closed when there is no downstream load.
