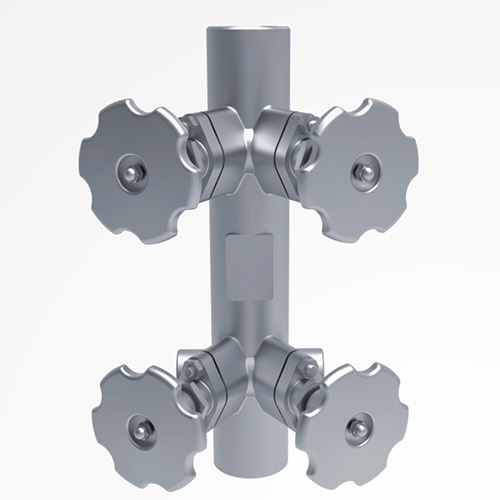

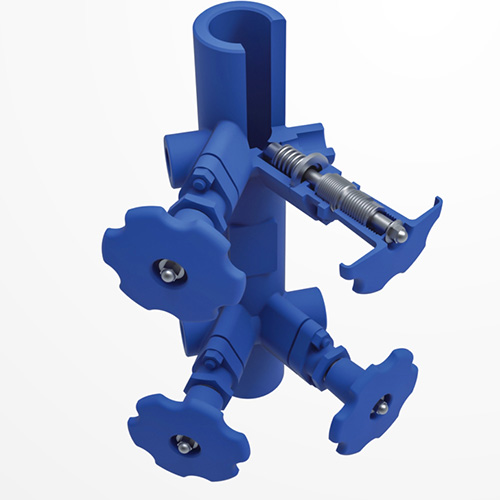

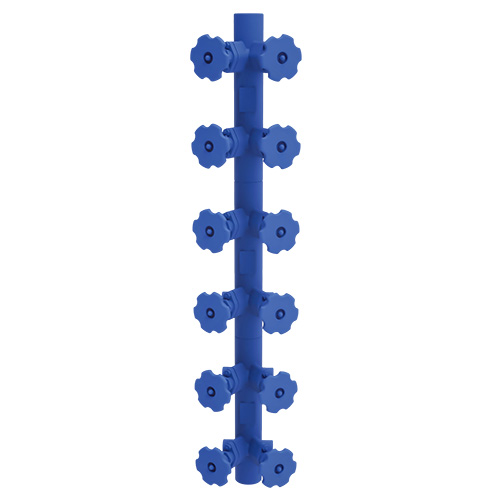

VTS Series Integrated Pipe Bundle

LTSZ Type Integrated Universal Trap Station

Features

LTSZ integrated steam trap station – combines inlet and outlet isolation valves, universal connector steam trap, filter, and test port in one. The design of the steam trap station greatly reduces installation space and costs. It is made of all stainless steel and is durable.

TB Series Bimetallic Steam Traps

Maximum pressure difference 150bar, maximum displacement up to 500Kg/h



Features

By adjusting the condensate discharge temperature, energy can be saved efficiently

Resistant to water hammer, corrosion and freezing, with excellent air exhaust performance.

Not affected by work pressure

A Series Replaceable Valve Seat Thermodynamic Steam Traps

Maximum pressure difference 65bar, maximum displacement up to 1500Kg/h



Materials

Valve body, valve cover: A105/F304/12Cr1MoV

Valve seat: Martensitic stainless steel

Valve disc: Martensitic stainless steel

Other internal parts: stainless steel

PTSZ Series Bypass Steam Trap Station

Features

PTSZ series steam trap station is composed of steam trap, stop valve and other valves. The steam trap station can be composed of corresponding configurations according to different working conditions.

Supplied as a complete set, saving on-site assembly time.

It can be flexibly adjusted according to the design working conditions.

MFP14 Series Automatic Pump

Automatic pump

Relying on steam, compressed air and other gases as power, condensate is transported from a low-pressure area to a high-pressure area, or from a negative pressure area (vacuum) to a normal pressure area.

Removing and recycling condensate can improve production efficiency, save energy, reduce water treatment costs, and effectively utilize steam.

Firefighting water hammer phenomenon, prevent equipment damage, and improve reliability and safety.

Condensate water up to 198°C can be recovered without cavitation.

Automatic pumps have a series of advantages that are unmatched by other pumps, such as automatic control, no cavitation, simple maintenance, no need for electricity, water hammer resistance, large displacement, explosion-proof, and no noise. The pressure of the power steam (gas) determines the head. It is widely used in the transportation of condensate in steam systems and liquids with low viscosity and no volatility.
