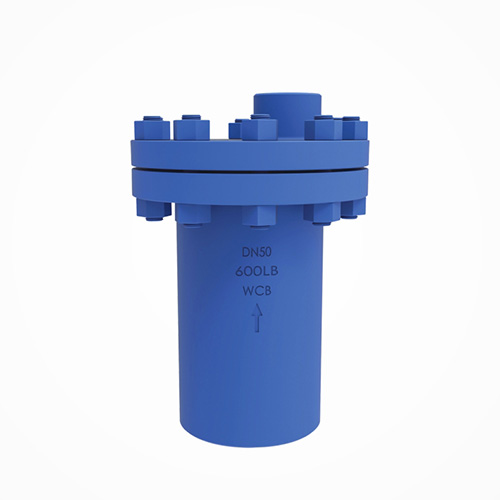

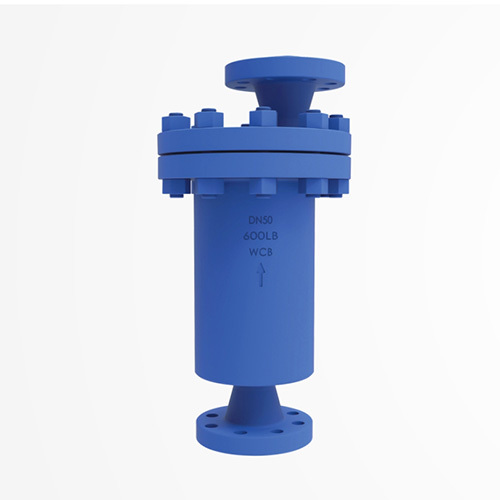

Vertical installation (bottom inlet, top outlet) maximum pressure difference 69 bar, maximum displacement up to 9072 kg/h

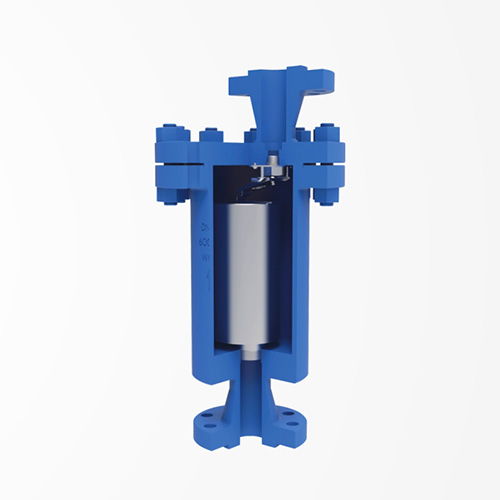

Materials
Valve body, valve cover: F22
Valve seat: Martensitic stainless steel
Valve disc: Martensitic stainless steel
Other internal parts: stainless steel
| Selection | Restrictions (Alloy) | Installation Instructions |
| •Built-in stainless steel check valve (CV) | • Design pressure (PMA): 160bar • Maximum operating pressure (PMO): 69bar • Maximum operating temperature (TMO): 475°C | Keep the valve body vertical during installation to ensure vertical up and down movement of the bucket. |
| Operation in overheating condition | For superheated steam |
| Under normal working conditions, what generally enters the inverted bucket steam trap is saturated steam and condensate. Superheated steam may also enter, but its condensation rate is basically equal to that of the steam in the valve. Therefore, regardless of the superheat, the steam trap is always at saturated temperature (or slightly lower). | Do not select too large a valve orifice, limit the orifice size, it is advisable to specially grind the disc and seat, and lengthen the inlet pipe and check valve. Provide a header with sufficient diameter and length . Provide a sufficient length of inlet pipe so that the steam trap is lower than the main line. Do not insulate the steam trap or inlet pipe. |
Dimensions/Weight (approximate) mm and Kg
| Model | 413(FW) | 415(FW) | 416(FW) | ||||||||
| 413(FF) | 415(FF) | 416(FF) | |||||||||
| Nominal diameter | 15 | 20 | 25 | 25 | 32 | 40 | 50 | 32 | 40 | 50 | |
| A(mm) | 310 | 379 | 448 | ||||||||
| A1(mm) | 378 | 459 | 546 | ||||||||
| A2(mm) | 412 | 416 | 426 | 485 | 495 | 505 | 580 | ||||
| B(mm) | 219 | 273 | 317 | ||||||||
| K(mm) | 37 | 45 | 55 | ||||||||
| Weight(Kg) | welding | 28 | 50 | 80 | |||||||
| Flange | 30 | 53 | 85 | ||||||||
Technical Parameters
| Model | 413 | 415 | 416 | |
| Connection Type | Threaded, socket welded, fabricated flanges | |||
| Installation | vertical | |||
| Maximum working pressure difference (PMX) | (A) | 1bar | 1bar | 1bar |
| (B) | 2bar | 2bar | 1.7 bar | |
| (C) | 4bar | 4bar | 2.8bar | |
| (D) | 5.5 bar | 6.9 bar | 4.1bar | |
| (AND) | 8.6 bar | 9 bar | 5.5 bar | |
| (F) | 12.4bar | 12.4bar | 8.6 bar | |
| (G) | 19bar | 15.5 bar | 12.4bar | |
| (H) | 31 bar | 24bar | 17bar | |
| (I) | 45bar | 34bar | 25.5 bar | |
| (J) | 69bar | 45bar | 34bar | |
| (K) | / | 69bar | 41bar | |
| (L) | / | / | 48bar | |
| (M) | / | / | 69bar | |
Please specify the following when ordering:
Model
Nominal diameter
Minimum and maximum working pressure difference
Connection method and standard
Options
